Isometric Pad | ISO4

Drop Files To Upload Documents

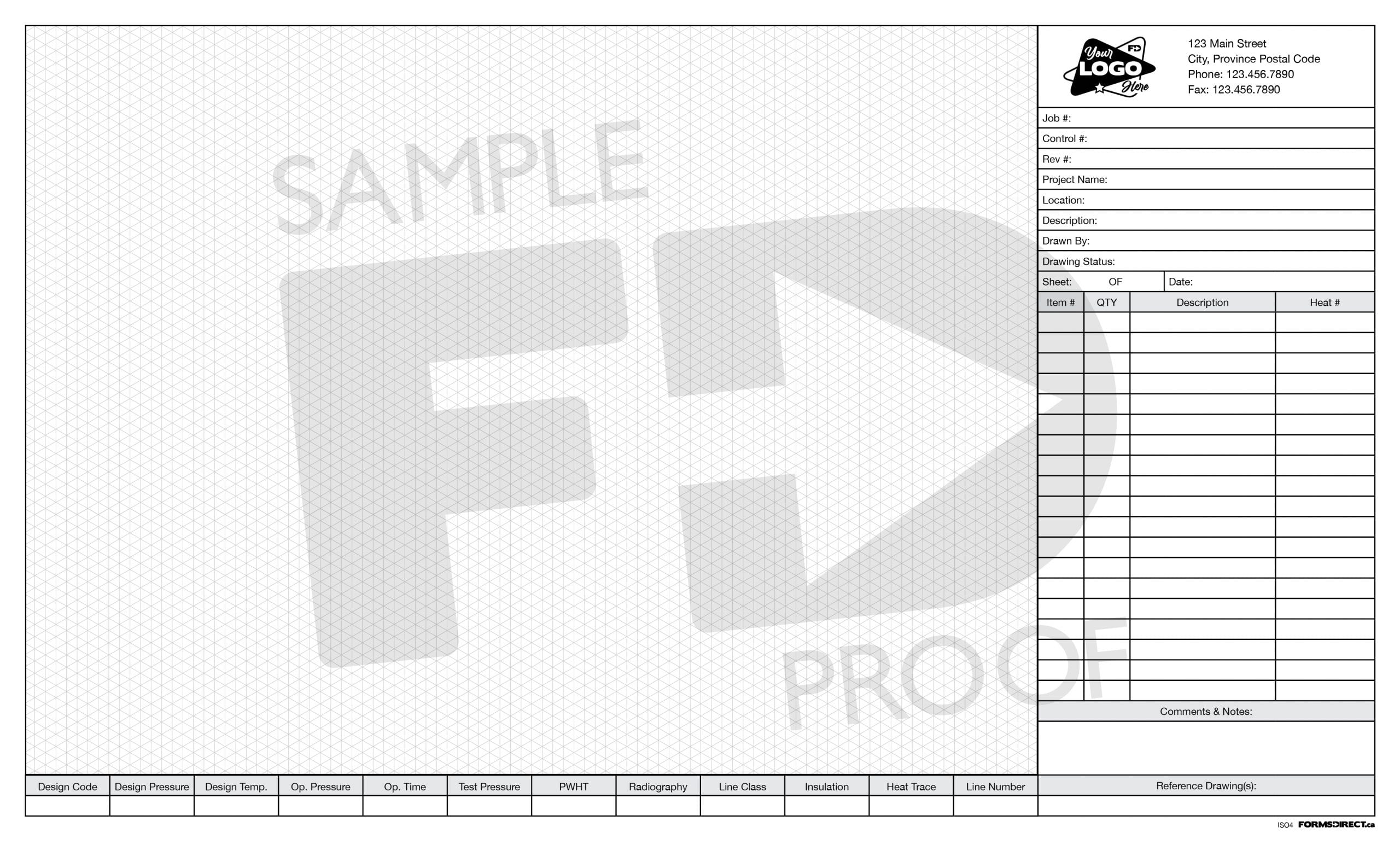

The Isometric Pad | ISO4 template is designed for use on industrial worksites. Made for a legal page size with a landscape orientation (14″ x 8.5″), the available graph section measures at 10.125″ wide and 7.5″ deep. Need any of the field names modified to fit your company’s specific needs? Just click HERE to visit the Print Your Own Design (Notepad) page. Use “ISO4” in the Template Code box to reference this template design and detail the requested modifications in the Special Instructions field.

Isometric drawing, also known as isometric projection, is a form of axonometric drawing. It uses the same scale for every axis thus creating a non-distorted image. The image is projects from a single point with lines coming out at a 30-degree angle creating the effect of viewing the drawing from one corner of the object looking down upon it. However, isometric drawings produce a perspective of how an object actually is rather than how your eye would perceive it. This means that parts of the image do not get smaller the farther away they are. By using isometric graph paper, the designer reduces the need for more traditional drawing tools such as rulers and squares.

Quantity options displayed in dropdown menu are TOTAL SHEETS – NOT PADS.
Example: 250 total sheets equates to 10 pads if the 25 pages per pad option is selected OR 5 pads if the 50 pages per pad option is selected.

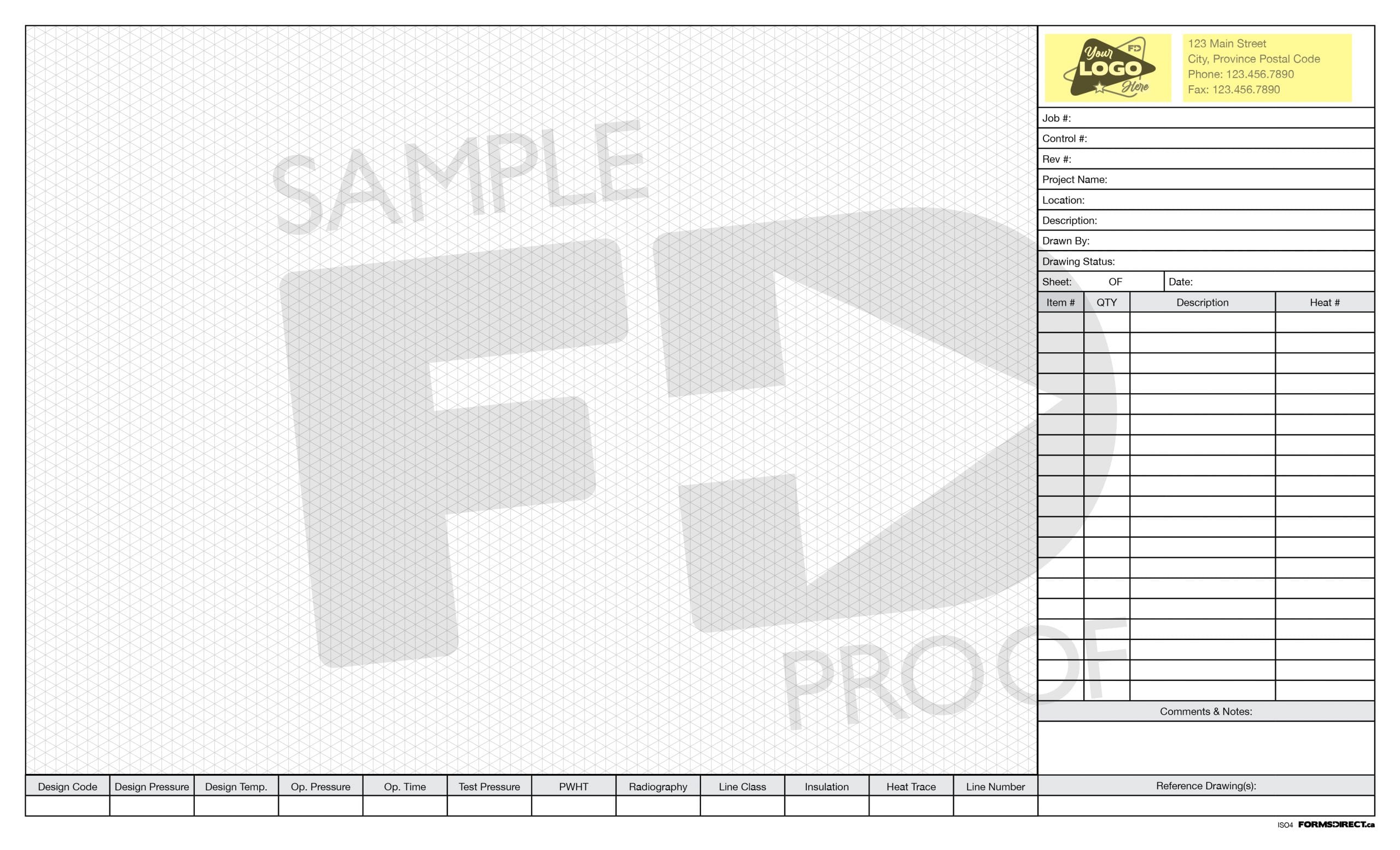

Standard customization options include:

  • Company logo
  • Company header (address, phone, etc.)

Want to print your own unique notepad design instead of using our templates? You can!
Visit our Print Your Own Design (Notepad) page, where you can select your preferred page size, pick your print specifications (with real time pricing), submit your print file and checkout!
